Product Details
Place of Origin: Guangdong, China
Model Number: B30L2
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Supply Ability: 10 Piece/Pieces per Day
Product Name: |

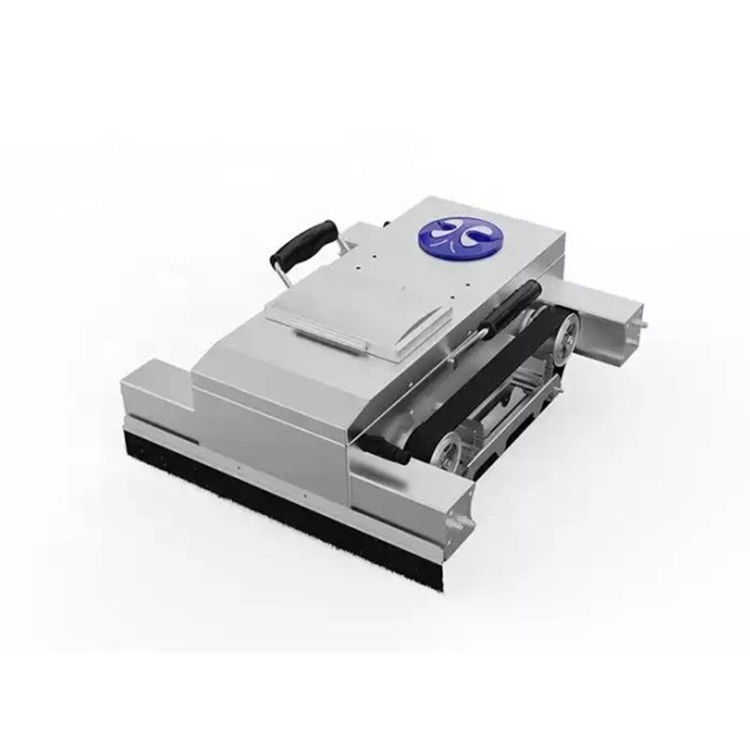

Solar Panel Cleaning Robot |
Application: |
Resident /Commercial Roof |
Feature: |
Fully Autonomous Simple Solar Cleaning Robot |
Warranty: |
1 Year Or 2400 Hours(whichever Comes First) |
Keyword: |
Photovoltaic Cleaning Tool |
Battery Capacity: |
15Ah |
Work Efficiency: |
≥600/h |
Weight: |
23.8KG |
Cleaning Mode:: |
Can Choose |
Product Size: |
570*556*238mm |
Port: |
Shenzhen |
Product Name: |
Solar Panel Cleaning Robot |
Application: |
Resident /Commercial Roof |
Feature: |
Fully Autonomous Simple Solar Cleaning Robot |
Warranty: |
1 Year Or 2400 Hours(whichever Comes First) |
Keyword: |
Photovoltaic Cleaning Tool |
Battery Capacity: |
15Ah |
Work Efficiency: |
≥600/h |
Weight: |
23.8KG |
Cleaning Mode:: |
Can Choose |
Product Size: |
570*556*238mm |
Port: |
Shenzhen |
SELECT HIGH QUALITY CARBON STEEL RAW MATERIALS
Design of a unique anti-glare
hidden vision sensor to achieve
high-precision positioning on
photovoltaic modules.
NO CRACKLE FOR MORE THAN 10000 TIMES
Maximum cross-seam 50MM,
maximum cross-barrier 40MM,
horizontal static pressure lower than 2200PA,
keep components away from hidden cracks.
|
Clean way
|
Laboratory Test Date
|
Project
|
||
|
Dry
Brushing
|
0~30°
|
PV panel Angle
|
||
|
-20~105℃
|
PV panel Surface Temp.
|
|||
|
-20~60℃
|
Environment Temp.★
|
|||
|
50mm
|
PV Panel Gap
|
|||
|
40mm
|
PV Height Difference
|
|||
|
50~100 mm Moderate rain
|
Rainfall
|
|||
|
75~88 km/h Strong Gale
|
Wind Power
|
|||
|
IP 65
|
IP Rating
|
|||
|
Water
Washing |
0~20°
|
PV Panel Angle
|
||
|
-20~35℃
|
PV Panel Surface Temp
|
|||
|
-20~41℃
|
Environment Temp.★
|
|||
|
50mm
|
PV Panel Gap
|
|||
|
15mm
|
PV Height Difference
|
|||
|
50~100 mm Moderate rain
|
Rainfall
|
|||
|
39~49 km/h Strong Breeze
|
Wind Power
|
|||
|
Technology
|
Based on TianyunOS Operating System
|
|||
|
Based on Glass vSLAM Visual Navigation Technology
|
||||
|
Based on Goodzenn Path Planning Technology
|
||||
|
|
||||
|
Life & Endurance
|
Design Life:
|
6 years
|
||
|
Warranty(whichever comes fifirst):
|
1 year or 2400 hours
|
|||
|
Battery Capacity:
|
15Ah
|
|||
|
The Battery Life*:
|
4 hours
|
|||
|
Charging Time:
|
3 hours
|
|||
|
8 Hours Battery Life:
|
Replace The Battery Every 4 hours
|
|||
|
|
||||
|
Ability to Clean
|
Dust(adhesion ≤10-6N):
|
≥99%
|
||
|
Dust Accumulation(adhesion≤10-4N):
|
≥95%
|
|||
|
Dried Guano (adhesion≤10-2N):
|
≥85%
|
|||
|
Cleaning Effificiency:
|
≥600m2/h
|
|||
|
|
||||
|
Shape
|
Body Size* (without brushes):
|
570*556*238mm
|
||
|
Body Weight* (without brushes):
|
23.8kg
|
|||
|
Brush Length* (detachable):
|
1235mm (B type); 1405mm (C type)
|
|||
|
Brush*(detachable):
|
7.2kg (B type)；7.6kg (C type)
|
|||
|
Brush and Water Branch*:
|
8.0kg (B type)；8.4kg (C type)
|
|||
|
|
||||
|
Manipulation
|
Maximum of Single Control:
|
24 sets
|
||
|
Roof RECO Maximum Number Operate:
|
4 sets
|
|||
|
RECO Maximum Number Operate on Slopes:
|
4 sets
|
|||
|
Software Upgrade:
|
OTA
|
|||
|
Work at Night:
|
Yes
|
|||
|
View Logs in Real Time:
|
Yes
|
|||
|
UAV Retraction:
|
Yes
|
|||
|
Unmanned on Approach Bridge:
|
Yes
|
|||
|
APP Control Remotely:
|
Yes
|
|||
|
Close Distance Remote Control* (Optional):
|
Yes
|
|||
|
Breakpoint Continuation:
|
Yes
|
|||
|
Adjust the Brush Speed:
|
Yes
|
|||
|
|
||||
|
Security
|
Working Mode:
|
Autonomous Work; Mobile APP
|
||
|
Positioning Mode:
|
AI Semantic Vision
|
|||
|
Positioning Accuracy:
|
≤10mm
|
|||
|
Steering Mode :
|
High Precision Adsorption Steering Mechanism
|
|||
|
Anti-fall Protection :
|
AI Semantic Vision + Ultrasonic
|
|||
|
Anti-skid :
|
Track Self-cleaning + High Precision
Deviation Correction Algorithm
|
|||
|
Protection Rate :
|
IP65
|
|||
|
Security :
|
10000 Cycles without Microcrack
|
|||
